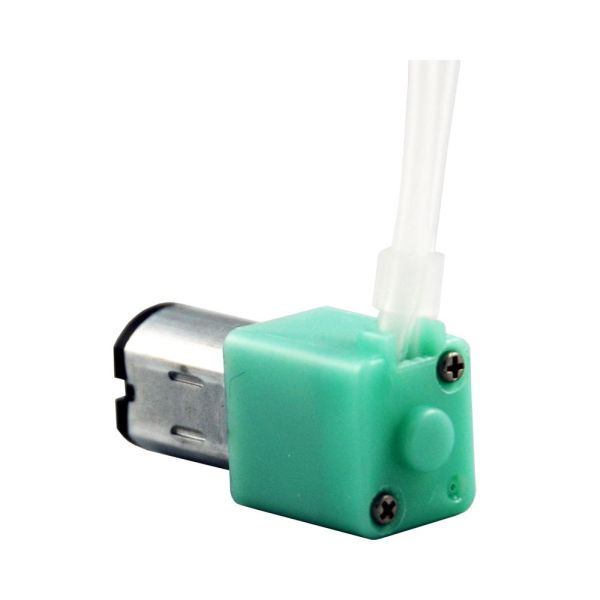

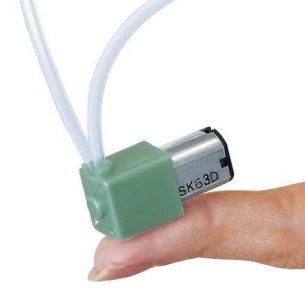

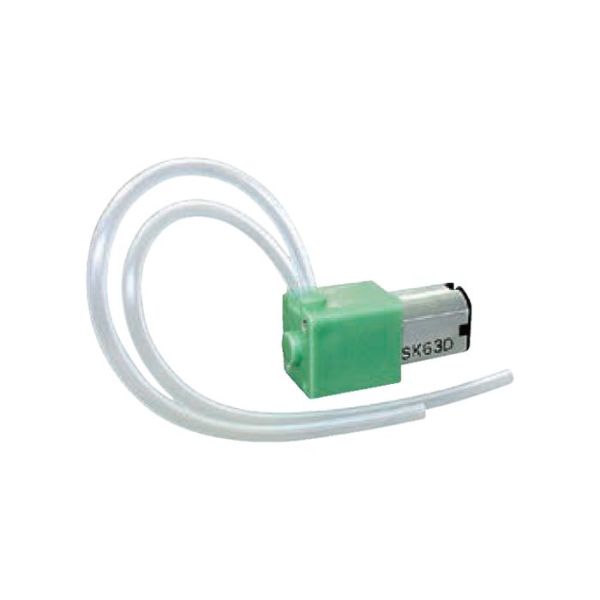

RP-Q1 | RP-QX Series - Miniature peristaltic pump
Flor rate: 0.10 - 0.45 | 0.50 - 1.10ml/min
Description
Peristaltic pump based on the Ring Pump principle for pumping very small quantities of liquids.
Due to its small dimensions and delivery rate, this pump is ideally suited for microfluidic applications.
Specifications
Motor
|
DC brush motor
|
Flow rate
|
0.10 - 0.45ml/min | 0.50 - 1.10ml/min
|
Channels
|
1
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
Norprene® | Silicone
|
Tube sizes (ID)
|
1.2mm (Norprene®) | 1.5mm (silicone)
|
Operating voltage
|
3VDC
|
Power consumption
|
0.12W
|
Dimensions
|
12.0 x 14.0 x 31.5 mm
|
Mounting direction
|
Any
|
Product overview
Model No.
|
Voltage (DC V)
|
Discharge rate (mL/min)
|
Tube Material
|
ID x OD (mm)
|
Discharge direction
|
|---|---|---|---|---|---|
RP-Q1.2N-P20Z-DC3V
|
3
|
0.2
|
Tygon A-60-F
|
1.2 x 2.5
|
A
|
RP-Q1.2C-P20Z-DC3V
|
3
|
0.2
|
SWFT
|
1.2 x 2.5
|
A
|
RP-Q1.5S-P45Z-DC3V
|
3
|
0.45
|
Silicone
|
1.5 x 2.5
|
A
|
RP-QX1.2N-P50Z-DC3V
|
3
|
0.5
|
Tygon A-60-F
|
1.2 x 2.5
|
B
|
RP-QX1.2C-P50Z-DC3V
|
3
|
0.5
|
SWFT
|
1.2 x 2.5
|
B
|
RP-QX1.5S-1Z-DC3V
|
3
|
1.1
|
Silicone
|
1.5 x 2.5
|
B
|

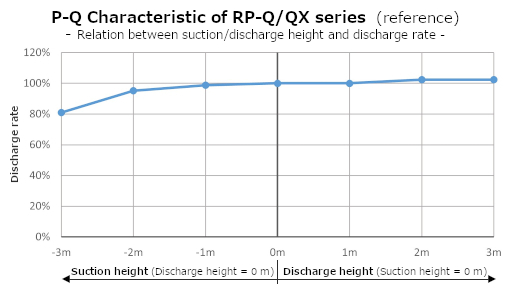

Relation between suction / discharge height and discharge rate

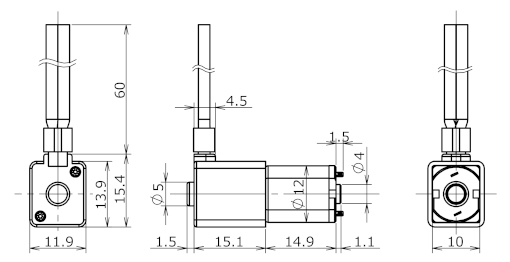

Dimensions
Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
Downloads
RP-Q1 datasheet 287 KB
