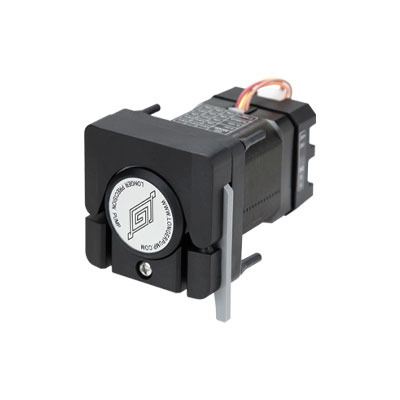

Precision peristaltic pump T100-WX10 - 2.5µl/min to 40ml/min
High precision, due to stepper motor control 0.1rpm to 100rpm
Description
- Version SC01: Communication control of the pump via the RS485 interface with support for Modbus RTU for easy system integration
- Version SE01: Flexible pump control via digital, analog, and pulse signals for versatile applications and straightforward system integration
- WX10‑14‑H pump head with 4 rollers (optional 8 rollers) for smooth flow and low pulsation
- High flexibility through support of various tubing sizes with the WX10‑14‑H pump head (0.8–1.0 mm wall thickness and up to 3.17 mm inner diameter)
- Flow rates from 2.5 µl/min using 0.5 × 0.8 mm (ID × WT) tubing at 0.1 rpm
- Flow rates up to 40 ml/min using 3.0 × 1.0 mm (ID × WT) tubing at 100 rpm
Specifications
Parameter
|
T100-SE01 + WX10-14-H
|
T100-SC01 + WX10-14-H
| |
|---|---|---|---|
Pump Speed
|
0–100 rpm
|
0–100 rpm
| |
Max. flow rate
|
40 mL/min
|
40 mL/min
| |
Rollers
|
4 / 8
|
4 / 8
| |
Speed Resolution
|
0.1 rpm
|
Modbus RTU: 0.01 rpm Longer OEM protocol: 0.1 rpm |
1 rom (400 rpm versions)
|
Running Direction Control
|
Controlled via switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = clockwise, contact closed = counterclockwise
|
Controlled via RS485 communication commands
| |
Start/Stop Control
|
Controlled via switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = start, contact closed = stop
|
Controlled via RS485 communication commands
| |
Control Functions
|
–
|
Control of speed, start/stop, running direction, and priming (full speed) via communication commands; power-up status configurable
| |
DIP Switch – Speed Setting
|
0–100 rpm; each DIP position corresponds to 5 rpm
|
0–100 rpm; each DIP position corresponds to 5 rpm
| |
External Speed Signals
|
4–20 mA, 0–5 V, 0–10 V, 0–10 kHz; signal-to-speed mapping configurable via communication commands
|
–
| |
Communication Interface
|
–
|
RS485
| |
Communication Parameters
|
–
|
Baud rate: 1200 / 9600 / 19200 / 115200 bps; Parity: None / Even; Pump address: 1–32; Stop bit: 1 bit
| |
Output
|
DC 5 V / 10 mA
|
DC 5 V / 10 mA
| |
Power Supply
|
DC 24 V / 8 W
|
DC 24 V / 8 W
| |
Dimensions (L × W × H)
|
94 × 59 × 67.5 mm
|
94 × 59 × 67.5 mm
| |
Mounting Method
|
Panel mount
|
Panel mount
| |
Operating Conditions
|
Temperature: 0–40 °C; relative humidity < 80 %
|
Temperature: 0–40 °C; relative humidity < 80 %
| |
Weight
|
0.47 kg
|
0.47 kg
|

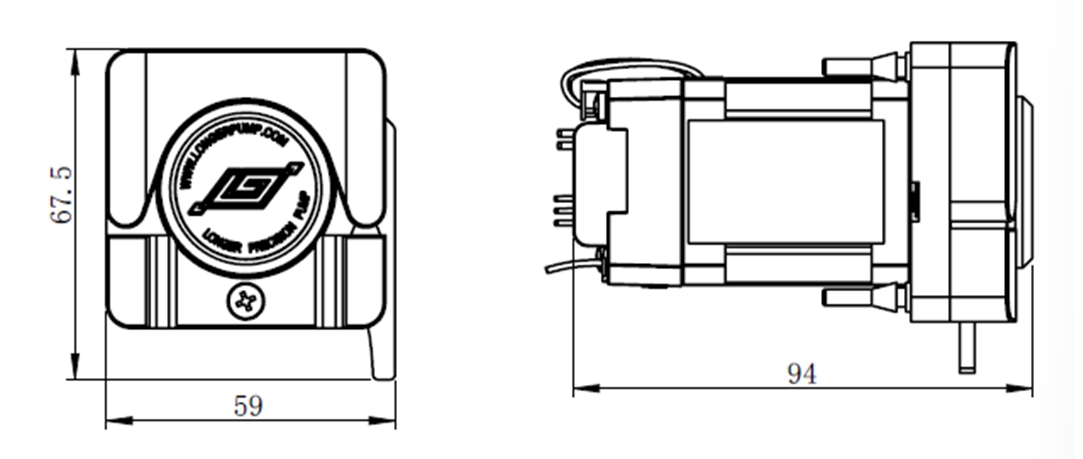

Dimensions

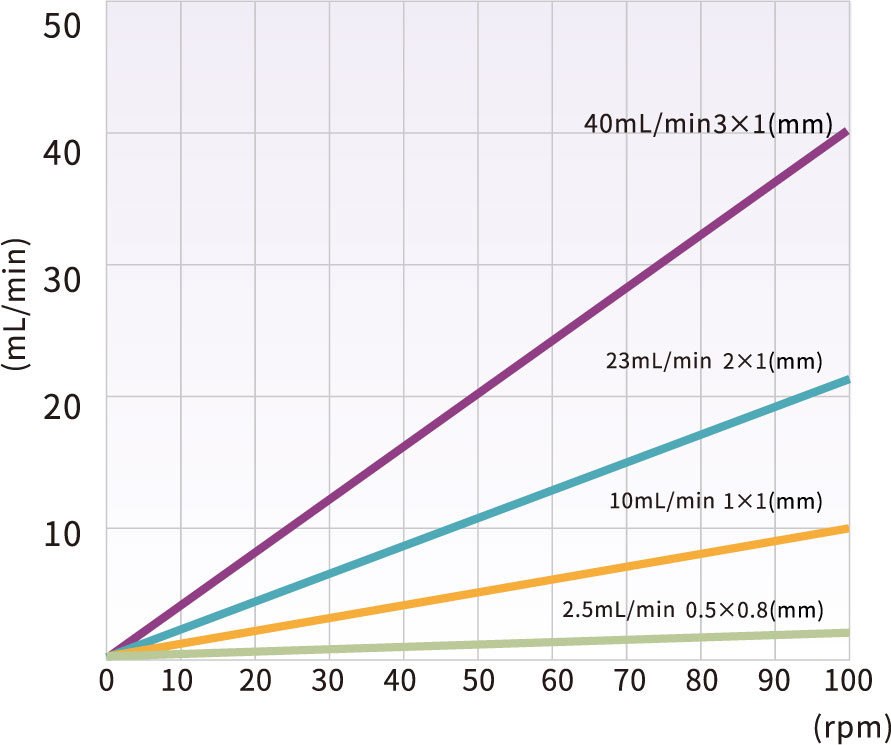

Flow rates
