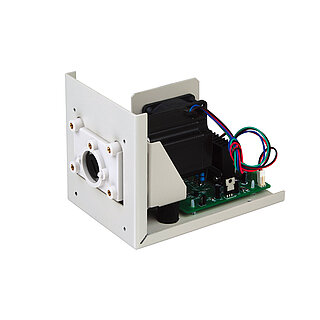

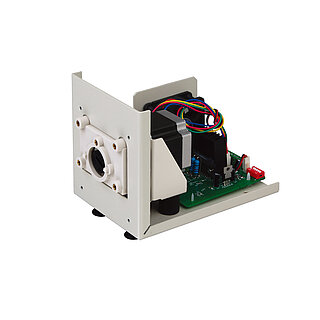

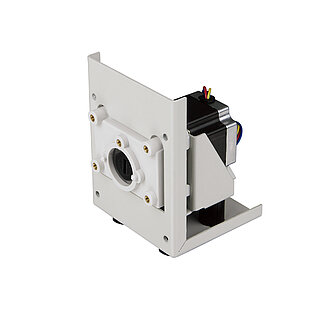

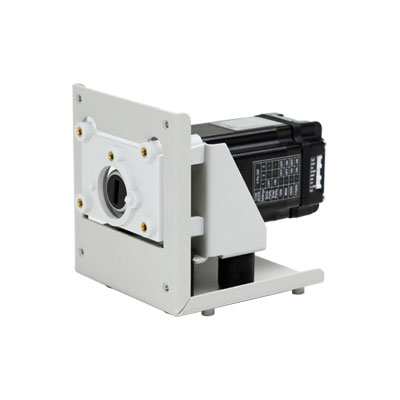

Precise peristaltic pump for different pump heads
Large selection of different pump heads (also multi-channel)
Description
Speeds: 0–100 rpm, 0–300 rpm, 0–600 rpm
Resolutions: 0.1 rpm, 1 rpm
Available control mode versions:
- Version SC01: Pump communication control via RS485 interface with support for Modbus RTU for easy system integration
- Version SE01: Flexible pump control via digital, analog, and pulse signals for versatile applications and straightforward system integration
Pump heads
Tubing
Pump head
|
Number
|
Inner-diameter
|
Wall-thickness
|
max. Flow rate
|
Weight
|
YZ1515x. YZII15
|
13#. 14#. 19#. 16#. 25#. 17#. 18#
|
0.8 - 7.9 mm
|
1.6, 1.7 mm
|
0.38 µl/min - 380 ml/min (T100) 6.3 µl/min - 1140 ml/min (T300) 6.3 µl/min - 2200 ml/min (T600) |
ca. 5.4 kg
|
YZ2515x
|
15#. 24#
|
4.8. 6.4 mm
|
2.4 mm
|
0.27 µl/min - 270 ml/min (T100) 160 µl/min - 840 ml/min (T300) 160 µl/min - 1600 ml/min (T600) |
ca. 5.4 kg
|
YZII25
|
15#. 24#. 35#. 36#
|
4.8 - 9.6 mm
|
2.4 mm
|
160 µl/min - 270 ml/min (T100) 160 µl/min - 840 ml/min (T300) 160 µl/min - 1600 ml/min (T600) |
ca. 5.4 kg
|
FG15-13
|
13#. 14#. 19#. 16#. 25#. 17#. 18#
|
0.8 - 7.9 mm
|
1.6, 1.7 mm
|
0.43 µl/min - 430 ml/min (T100) 6.3 µl/min - 1200 ml/min (T300) 6.3 µl/min - 2400 ml/min (T600) |
ca. 5.3 kg
|
FG25-13
|
15#. 24#
|
4.8. 6.4 mm
|
2.4 mm
|
0.32 µl/min - 320 ml/min (T100) 228 µl/min - 1100 ml/min (T300) 228 µl/min - 2200 ml/min (T600) |
ca. 5.3 kg
|
DMD15-13-B
|
2*13#. 2*14#. 2*19#. 2*16#. 2*25#
|
0.8 - 4.8 mm
|
1.6, 1.7 mm
|
0.375 µl/min - 375 ml/min (T100) 13 µl/min - 1040 ml/min (T300) 13 µl/min - 2070 ml/min (T600) |
ca. 5.4 kg
|
DG15-24
|
16#. 25#. 17#
|
3.2 - 6.4 mm
|
1.6 mm
|
0.27 µl/min - 270 ml/min (T100) 81 µl/min - 800 ml/min (T300) 81 µl/min - 1600 ml/min (T600) |
ca. 5.8 kg
|
DG15-28
|
13#. 14#
|
0.8 - 1.6 mm ≤3.17mm |
1.7 mm 0.8 - 1.0 mm |
0.21µl/min - 75 ml/min (T100) ≤ 100rpm
|
ca. 5.7 kg
|
DG-(1. 2. 4) - 6 Rollen
|
≤3.17mm
|
0.8 - 1.0 mm
|
0.20µl/min - 48 ml/min (T100) ≤ 100rpm
|
ca. 5.2 - 5.6 kg
| |
DG-(1. 2. 4) - 10 Rollen
|
≤3.17mm
|
0.8 - 1.0 mm
|
0.16µl/min - 32 ml/min (T100) ≤ 100rpm
|
ca. 5.2 - 5.6 kg
|

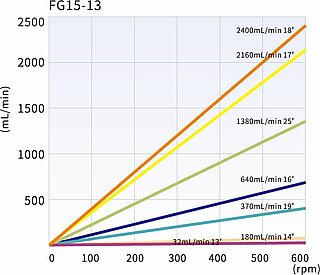

Flow rates
Specifications pump system SE01
Parameter
|
T100-SE02-01
|
T300-SE02-01
|
T600-SE02-01
|
|---|---|---|---|
Pump Speed
|
0–100 rpm
|
0–300 rpm
|
0–600 rpm
|
Speed Resolution
|
0.1 rpm
|
1 rpm
|
1 rpm
|
Running Direction Control
|
Pump running direction is controlled by a switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = clockwise, contact closed = counterclockwise
|
Pump running direction is controlled by a switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = clockwise, contact closed = counterclockwise
|
Pump running direction is controlled by a switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = clockwise, contact closed = counterclockwise
|
Start/Stop Control
|
Start/stop controlled by a switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = start, contact closed = stop
|
Start/stop controlled by a switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = start, contact closed = stop
|
Start/stop controlled by a switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = start, contact closed = stop
|
DIP Switch – Speed Setting
|
0–100 rpm; each DIP position corresponds to 5 rpm
|
0–300 rpm; each DIP position corresponds to 10 rpm
|
0–600 rpm; each DIP position corresponds to 20 rpm
|
External Speed Signals
|
4–20 mA, 0–5 V, 0–10 V, 0–10 kHz; signal‑to‑speed mapping configurable via communication commands
|
4–20 mA, 0–5 V, 0–10 V, 0–10 kHz; signal‑to‑speed mapping configurable via communication commands
|
4–20 mA, 0–5 V, 0–10 V, 0–10 kHz; signal‑to‑speed mapping configurable via communication commands
|
Output
|
DC 5 V / 100 mA
|
DC 5 V / 100 mA
|
DC 5 V / 100 mA
|
Power Supply
|
DC 24 V / 15 W
|
DC 24 V / 45 W
|
DC 24 V / 55 W
|
Dimensions (L × W × H)
|
121 × 102 × 118 mm
|
143 × 102 × 118 mm
|
143 × 102 × 118 mm
|
Mounting Method
|
Panel mount or soleplate mount
|
Panel mount or soleplate mount
|
Panel mount or soleplate mount
|
Working Conditions
|
Temperature: 0–40 °C; relative humidity < 80 %
|
Temperature: 0–40 °C; relative humidity < 80 %
|
Temperature: 0–40 °C; relative humidity < 80 %
|
Weight (without pump head)
|
1.29 kg
|
1.61 kg
|
1.61 kg
|
Specifications pump system SC01
Parameter
|
T100-SC02-01
|
T300-SC02-01
|
T600-SC02-01
|
|---|---|---|---|
Pump Speed
|
0–100 rpm
|
0–300 rpm
|
0–600 rpm
|
Speed Resolution
|
0.1 rpm
|
1 rpm
|
1 rpm
|
Control Function
|
RS485 interface; supports Modbus RTU and Longer Pump OEM protocol; control of speed, start/stop, running direction and priming (full speed) via communication commands; power-up status configurable
|
RS485 interface; supports Modbus RTU and Longer Pump OEM protocol; control of speed, start/stop, running direction and priming (full speed) via communication commands; power-up status configurable
|
RS485 interface; supports Modbus RTU and Longer Pump OEM protocol; control of speed, start/stop, running direction and priming (full speed) via communication commands; power-up status configurable
|
Communication Parameters
|
Baud rate: 1200 / 9600 / 19200 / 115200 bps; Parity: None or Even; Pump address: 1–32; Stop bit: 1 bit
|
Baud rate: 1200 / 9600 / 19200 / 115200 bps; Parity: None or Even; Pump address: 1–32; Stop bit: 1 bit
|
Baud rate: 1200 / 9600 / 19200 / 115200 bps; Parity: None or Even; Pump address: 1–32; Stop bit: 1 bit
|
Output
|
DC 5 V / 100 mA
|
DC 5 V / 100 mA
|
DC 5 V / 100 mA
|
Power Supply
|
DC 24 V / 15 W
|
DC 24 V / 45 W
|
DC 24 V / 55 W
|
Dimensions (L × W × H)
|
121 × 102 × 118 mm
|
143 × 102 × 118 mm
|
143 × 102 × 118 mm
|
Mounting Method
|
Panel mount or soleplate mount
|
Panel mount or soleplate mount
|
Panel mount or soleplate mount
|
Working Conditions
|
Temperature: 0–40 °C; relative humidity < 80 %
|
Temperature: 0–40 °C; relative humidity < 80 %
|
Temperature: 0–40 °C; relative humidity < 80 %
|
Weight (without pump head)
|
1.29 kg
|
1.61 kg
|
1.61 kg
|
