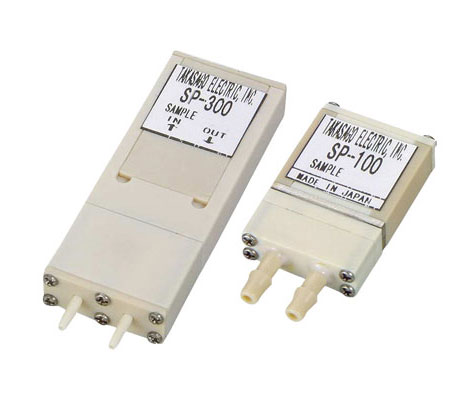

SP micropumps | Shape Memory Alloy
In development
Description
These stroke dosing pumps are driven by a shape memory alloy and are designed for two dosing sizes.
The diaphragm-separated miniature pump series are characterized by their compact design, very low weight, and low power consumption.
Specifications
Type
|
SP-100
|
SP-300
|
Ddelivery rate
|
2 μl / stroke
|
6 μl / stroke
|
Pressure (max.)
|
50 mbar
|
50 mbar
|
Operation current
|
250 mA
|
200 mA
|
Frequency (max.)
|
1 Hz
|
0.75 Hz
|
Fluid temperature range
|
5 - 40 ° C
|
5 - 40 ° C
|
Ambient temperature range
|
5 - 40 ° C
|
5 - 40 ° C
|
Connections
|
hose barb
|
hose barb
|
Dimensions
|
5 x 15 x 20.5 mm
|
6 x 16 x 41.2 mm
|
