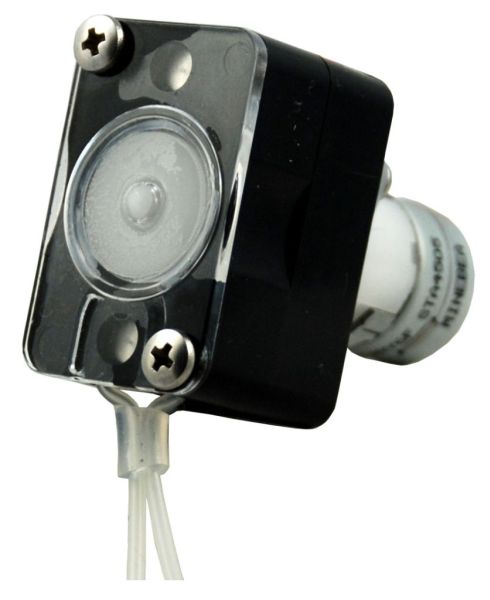

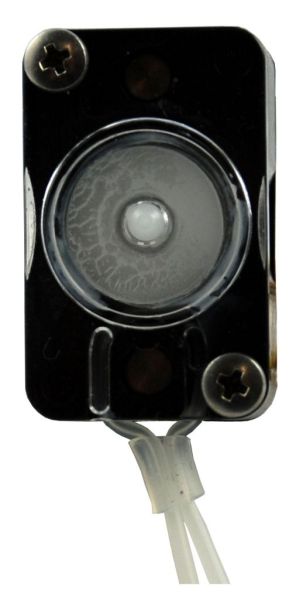

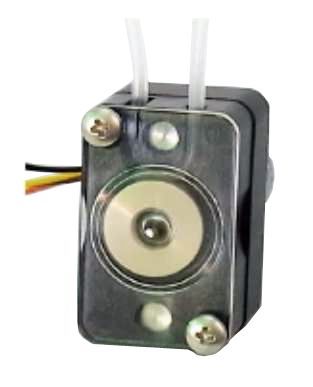

RP-HX Series - miniature peristaltic pump with exchangeable pump head
Flow rate: 2 - 400µl/min (Silicone) | 5 - 1000µl/min (Silicone) | 2 - 350µl/min (Pharmed® BPT)
Description
Peristaltic pump based on the Ring Pump principle for pumping from micro liters to milliliters.
Easily exchangeable pump head with a magnetic mechanism
Pump head with integrated tube
Minimum dimensions of only 32.0 x 20.0 x 46.0 mm (L x W x D)
Specifications
Motor
|
Stepper motor
|
Flow rate
|
2 - 400 μl/min ± 20% Silicone: @ Motor rotation: 20-4000 pps (1/4 micro step) *5 - 1000 μl/min ± 20% Silicone: @ Motor rotation: 20-4000 pps (1/4 micro step)* *2 – 350 μl/min ± 20% Pharmed® BPT: @ Motor-rotation: 20-4000 pps (1/4 micro step) |
Channels
|
1
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
Silicone | Pharmed® BPT (other tube materials on request) |
Tube sizes
|
(I.D. x O.D.) 0.5 x 1.5mm | 1.0 x 2.0mm
|
Operating voltage
|
3VDC
|
Dimensions
|
32.0 x 20.0 x 46.0 mm
|
Mounting direction
|
Any
|
* Note: For operation above 2000 pps, the maximum operating time is 10 min.
Autoclave sterilization of Pump-head
Model No.
|
Model No. of Pump-head
|
Autoclave sterilization of Pump-head
|
Wire length (mm)
|
|---|---|---|---|
RP-HXP5S-P4A-DC3VS
|
RK-HXP5S
|
No
|
150
|
RP-HX01S-1A-DC3VS
|
RK-HX01S
|
No
|
150
|
RP-HXP5F-P25A-DC3VS
|
RK-HXP5F
|
No
|
150
|
RP-HXP5S-P4E-DC3VS
|
RK-HXP5S-C
|
Yes
|
1150
|
RP-HX01S-1H-DC3VS
|
RK-HX01S-D
|
Yes
|
1150
|
Product overview
Model No.
|
Voltage (DC V)
|
Discharge rate (µl/min)
|
Tube Material
|
ID x OD (mm)
|
|---|---|---|---|---|
RP-HXP5S-P4A-DC3VS
|
3
|
2 - 400
|
Silicone
|
0.5 x 1.5
|
RP-HX01S-1A-DC3VS
|
3
|
5 - 1,000
|
Silicone
|
1.0 x 2.0
|
RP-HXP5F-P25A-DC3VS
|
3
|
2 - 350
|
Pharmed® BPT
|
0.5 x 1.5
|
RP-HXP5S-P4E-DC3VS
|
3
|
2 - 400
|
Silicone
|
0.5 x 1.5
|
RP-HX01S-1H-DC3VS
|
3
|
5 - 1,000
|
Silicone
|
1.0 x 2.0
|

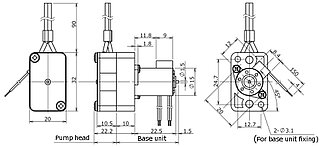

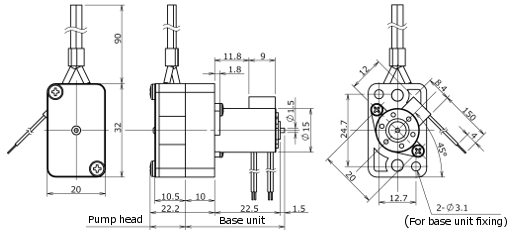

Dimensions
Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
Controller for Stepper Motor RingPumps
RE-C500/C501 Programmable Stepper Motor Controller RingPumps RP-HX, RP-TX, RP-QIIB/C & RP-QIIIB/C
A PC connected to the RE-C500 can control various pump operations.
Control 6 pumps with RE-C500 and up to 12 pumps by adding one RE-C501.
RE-C600 Programmable Stepper Motor Controller RingPumps RP-HX, RP-TX, RP-QIIB/C & RP-QIIIB/C
Various pump operation sequences can be programmed using a PC connected to the RE-C600.
Stepper motor driver board BD202411-Q
- This stepper motor driver is used to connect the motor and the power supply, and to control the motor via external control signals.
- A separate control device is required to send the control signals.
- A 24 V DC, 1 A power supply is needed.
Downloads
RP-HX datasheet 3 MB
