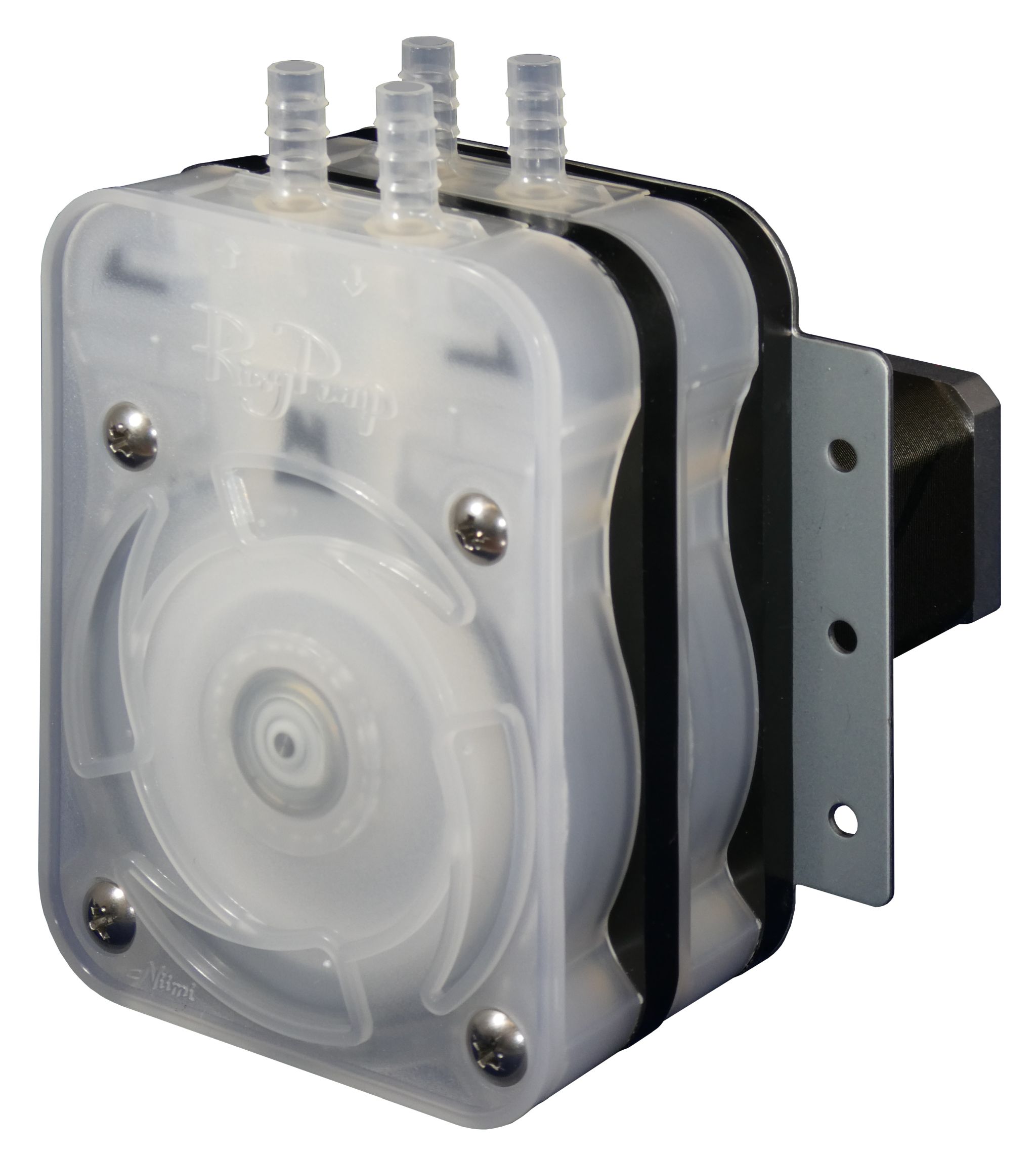

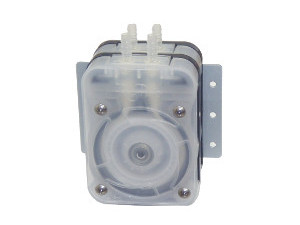

RP-2S Series - Ring Pump double head peristaltic pump - high flow rate
Flow rates: 1000ml/min, 1400ml/min, 1600ml/min | 2 bis 1300 mL/min
Description
Doble-head peristaltic pump based on the Ring Pump principle for pumping various fluids depending on the tubes material in different flow rate ranges.
For the peristaltic pump version with stepper motor, the flow rate can be adjusted over a wide range from 2 to 1300 mL/min.
By combining the two channels into a single fluidic stream, the dual-head design helps reduce pulsation. Alternatively, each of the two pump heads can deliver different liquid
Significant extension of service intervals due to gentle pump system and durable hose. (see Ring-Pump System)
Large flow rate with fixed tube.
Specifications
Motor
|
DC gear motor | Stepper motor
|
Flow rate
|
1000ml/min | 1400ml/min | 1600ml/min | 2ml/min (at 0.3 rpm) to 1300ml/min (at 250 rpm) |
Channels
|
2
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
Silicone | PharMed® | TRansmaster TM-15
|
Operating voltage
|
24VDC
|
Mounting direction
|
Any
|
Product overview
Model No.
|
Motor
|
Voltage (VDC)
|
Discharge rate (mL/min)
|
Tube Material
|
ID x OD (mm)
|
Motor
|
Rotation direction
|
|---|---|---|---|---|---|---|---|
RP-2S06N-1000Z-DC24V
|
DC gear motor
|
24
|
1000
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-2S06F-1000Z-DC24V
|
DC gear motor
|
24
|
1000
|
PharMed BPT
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-2S06W-1000Z-DC24V
|
DC gear motor
|
24
|
1000
|
Transmaster TM-15
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-2S06N-1400Z-DC24V
|
DC gear motor
|
24
|
1400
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor B
|
CW
|
RP-2S06F-1400Z-DC24V
|
DC gear motor
|
24
|
1400
|
PharMed BPT
|
6.35 ｘ 9.52
|
Motor B
|
CW
|
RP-2S07W-1600Z-DC24V
|
DC gear motor
|
24
|
1600
|
Transmaster TM-15
|
7 ｘ 10
|
Motor B
|
CW
|
RP-2S06N-1300Z-DC24VS
|
Stepper motor
|
24
|
2 (at 0.3 rpm) to 1300 (at 250 rpm)
|
Tygon A-60-F
|
6.35 x 9.52
| ||
RP-2S06R1300Z-DC24VS
|
Stepper motor
|
24
|
2 (at 0.3 rpm) to 1300 (at 250 rpm)
|
Versilon F-5500-A
|
6.35 x 9.52
| ||
RP-2S06F-1300Z-DC24VS
|
Stepper motor
|
24
|
2 (at 0.3 rpm) to 1300 (at 250 rpm)
|
PharMed BPT
|
6.35 x 9.52
| ||
RP-2S06W-1300Z-DC24VS
|
Stepper motor
|
24
|
2 (at 0.3 rpm) to 1300 (at 250 rpm)
|
Transmaster TM-15
|
6.35 x 9.52
|

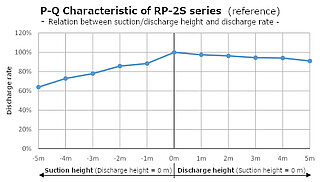

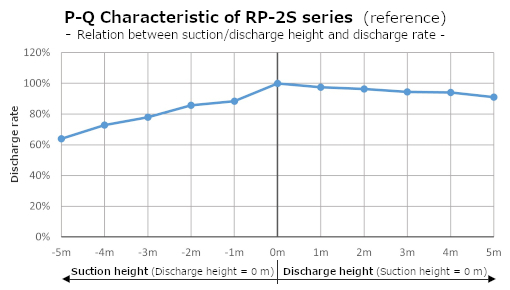

Relation between suction / discharge height and discharge rate

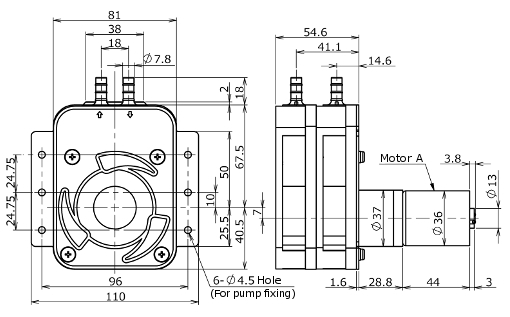

Dimensions (DC-Versions)

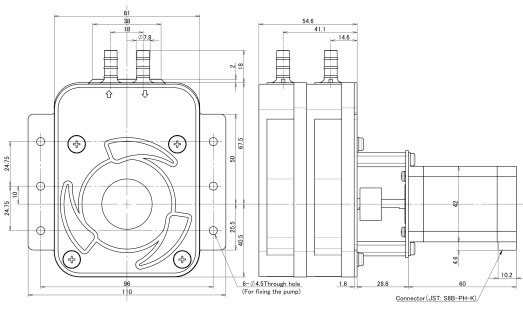

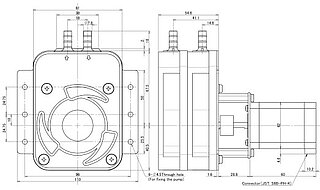

Dimensions (Stepper motor-Versions)

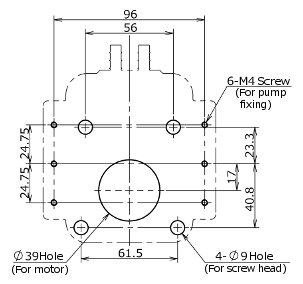

Mounting holes

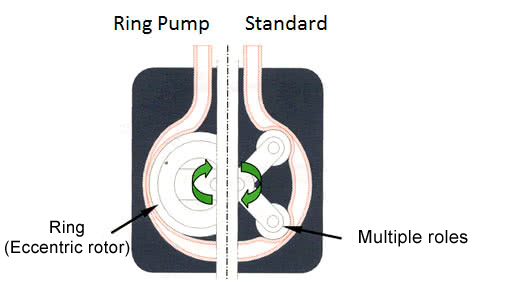

Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.

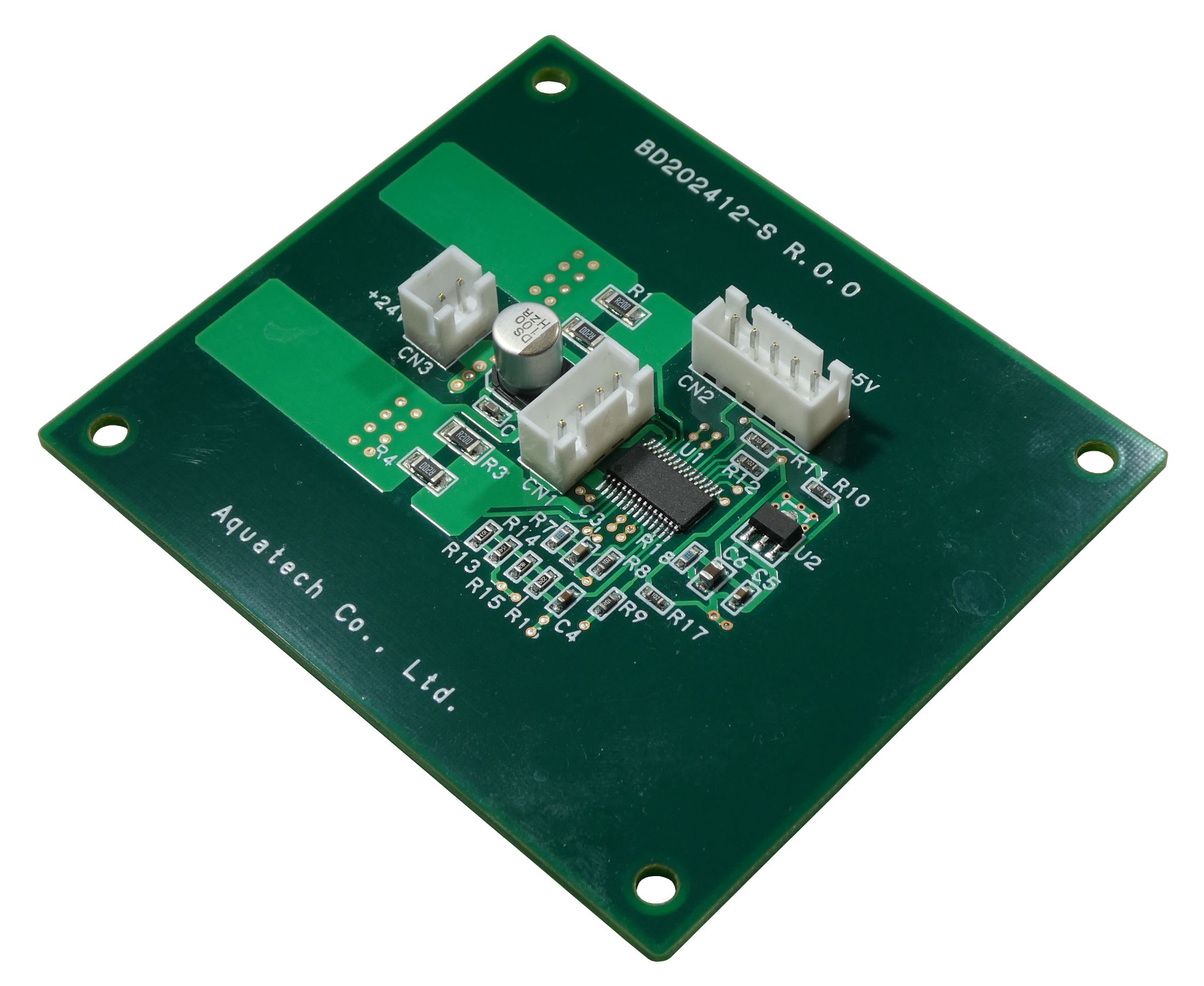

Stepper motor driver board BD202412-S
- This stepper motor driver is used to connect the motor and the power supply, and to control the motor via external control signals.
- A separate control device is required to send the control signals.
- A 24 V DC, 2 A power supply is needed.
Downloads
RP-2S datasheet 205 KB
