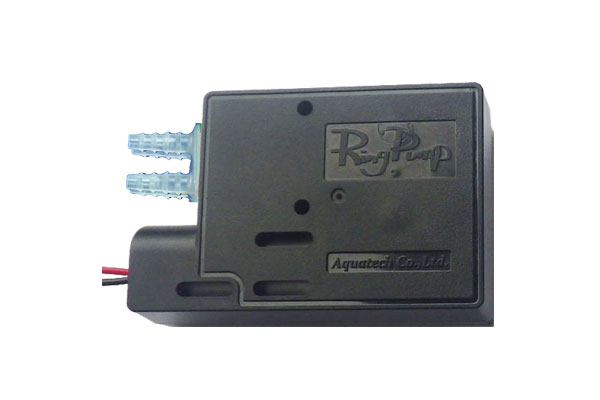

RP-2GII Series - Ring Pump peristaltic pump
Flow rates: 20ml/min | 25ml/min | 30 ml/min | 35ml/min | 50ml/min | 70ml/min | 80ml/min
Description
Double-head peristaltic pump based on the Ring Pump principle for pumping different fluids depending on the tube material in different flor rate ranges.
Specifications
Motor
|
DC gear motor
|
Flow rate
|
20ml/min | 25ml/min | 30 ml/min | 35ml/min | 50ml/min | 70ml/min | 80ml/min
|
Channels
|
2
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
Silicone | PharMed® | Norprene® | TM-15
|
Tube sizes (I.D. x O.D.)
|
2.0 x 4.0mm | 2.0 x 4.2mm | 2.5 x 4.5mm | 2.8 x 4.8mm
|
Operating voltage
|
12VDC | 24VDC
|
Dimensions
|
74.0 x 27.0 x 47.5 mm
|
Mounting direction
|
Any
|
Product overview
Model No.
|
Voltage (DC V)
|
Discharge rate (mL/min)
|
Tube Material
|
ID x OD (mm)
|
|---|---|---|---|---|
RP-2GII02S-25Z-DC12V
|
12
|
25
|
Silicone
|
2.0 x 4.0
|
RP-2GII02F-25Z-DC12V
|
12
|
20
|
PharMed BPT
|
2.0 x 4.0
|
RP-2GII02S-50Z-DC24V
|
24
|
50
|
Silicone
|
2.0 x 4.0
|
RP-2GII02F-50Z-DC24V
|
24
|
50
|
PharMed BPT
|
2.0 x 4.0
|
RP-2GII2.5S-35Z-DC12V
|
12
|
30
|
Silicone
|
2.5 x 4.5
|
RP-2GII2.5S-70Z-DC24V
|
24
|
70
|
Silicone
|
2.5 x 4.5
|
RP-2GII2.8N-40Z-DC12V
|
12
|
35
|
Tygon A-60-F
|
2.8 x 4.8
|
RP-2GII2.8N-80Z-DC24V
|
24
|
80
|
Tygon A-60-F
|
2.8 x 4.8
|

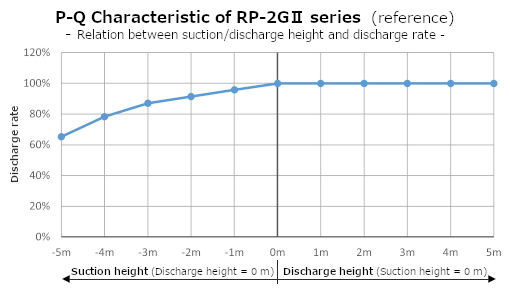

Relation between suction / discharge height and discharge rate

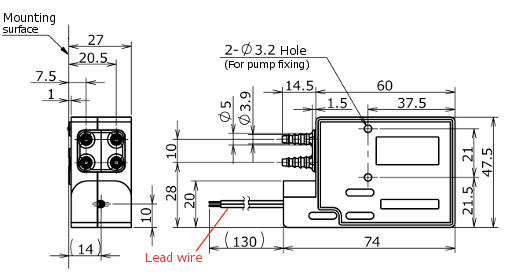

Dimensions
Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
