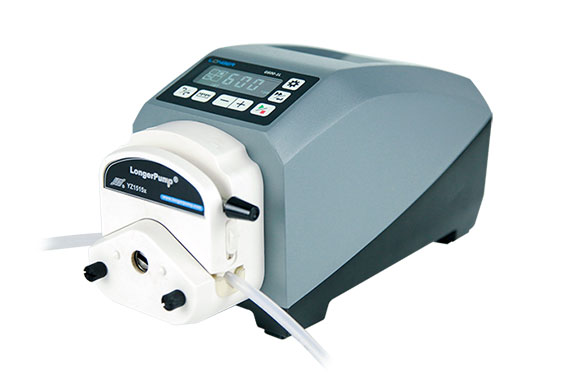

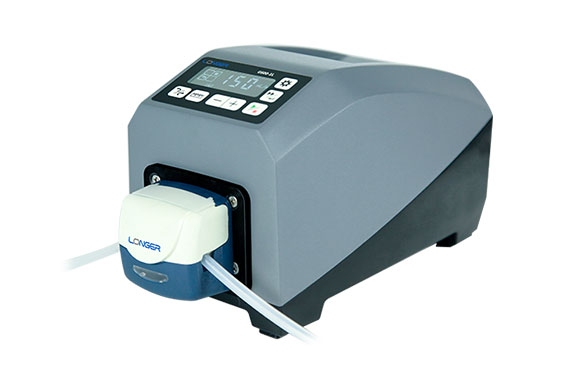

Precise laboratory peristaltic pump up to 3000 ml/min - IP66

Flow Rates: 0-3000mL/min

Description

With aluminium alloy housing, the pump has a good corrosive resistance and could be used in corrosive environment.
With high IP rating (IP 66), the pump could be used in wet and dusty environment.

Flow rates: 0-3000 ml/min

Max. Number of Channels: 4

Specifications pump system

Parameter	G100-1L / G300-1L / G600-1L
Speed range	0.01–150 rpm 0.01–350 rpm 0.01–650 rpm
Speed resolution	0.01 rpm (<10 rpm); 0.1 rpm (10 ≤ rpm < 100); 1 rpm (100 rpm to max.)
Flow rate range	0.15 µL/min – 750 mL/min 0.15 µL/min – 1,750 mL/min 0.15 µL/min – 3,250 mL/min
Display	LCD for speed, flow rate, running time, dispensed volume, and additional parameters
Operating modes	Continuous transfer, timed transfer, volume transfer
Calibration	Improves flow rate and dispensing volume accuracy
Control modes	Keypad control, foot switch control, external signal control, and communication control
External control functions	Start/Stop, direction control (logic level or dry contact); momentary or maintained trigger configurable Speed control: 0–5 V / 0–10 V / 4–20 mA / 0–10 kHz (signal range configurable)
Communication control	RS485 interface, Modbus RTU, and Longer Pump OEM protocol; communication parameters configurable
Keypad lock	Keypad can be locked to prevent misoperation; lock delay time configurable
Parameter memory	Running parameters and system parameters are saved automatically
Pump status at power‑up	Pump status at power‑up can be set to Stop or the last operating state
Priming function	Fast filling or emptying at maximum speed
Certification	CE, UKCA EMC: EN IEC 61000‑6‑2:2019 / EN IEC 61000‑6‑4:2019 LVD: EN 61010‑1:2010/A1:2019
Dimensions (L × W × H)	240 × 142 × 152 mm
Power supply	AC 100–240 V, 50/60 Hz
Power consumption	25 W 40 W 60 W
Operating conditions	Ambient temperature: 0–40 °C; relative humidity: 10–90 %
IP rating	IP66
Weight	3.64 kg 3.75 kg 3.75 kg

Pump heads

Pump head Pumpenkopf YZ1515 PPS — YZ1515 PPS

Pump head DG15 2-Channels — DG15 2-Channels

Pump head DG15 4-Channels — DG15 4-Channels

Tubing

Pump head	Number	Inner-diameter	Wall-thickness	max. Flow rate	Weight
YZ1515x, YZII15	13#, 14#, 19#, 16#, 25#, 17#, 18#	0,8 - 7,9 mm	1,6, 1,7 mm	380 ml/min	ca. 5,4 kg
YZ2515x	15#, 24#	4,8, 6,4 mm	2,4 mm	266 ml/min	ca. 5,4 kg
YZII25	15#, 24#, 35#, 36#	4,8 - 9,6 mm	2,4 mm	500 ml/min	ca. 5,4 kg
FG15-13	13#, 14#, 19#, 16#, 25#, 17#, 18#	0,8 - 7,9 mm	1,6, 1,7 mm	430 ml/min	ca. 5,3 kg
FG25-13	15#, 24#	4,8, 6,4 mm	2,4 mm	270 ml/min	ca. 5,3 kg
DMD15-13-B	213#, 214#, 219#, 216#, 2*25#	0,8 - 4,8 mm	1,6, 1,7 mm	375 ml/min	ca. 5,4 kg
DG15-24	16#, 25#, 17#	3,2 - 6,4 mm	1,6 mm	300 ml/min	ca. 5,8 kg
DG15-28	13#, 14#	0,8 - 1,6 mm ≤3,17mm	1,7 mm 0,8 - 1,0 mm	75 ml/min	ca. 5,7 kg
DG-(1, 2, 4) - 6 Rollen		≤3,17mm	0,8 - 1,0 mm	48 ml/min	ca. 5,2 - 5,6 kg
DG-(1, 2, 4) - 10 Rollen		≤3,17mm	0,8 - 1,0 mm	32 ml/min	ca. 5,2 - 5,6 kg
