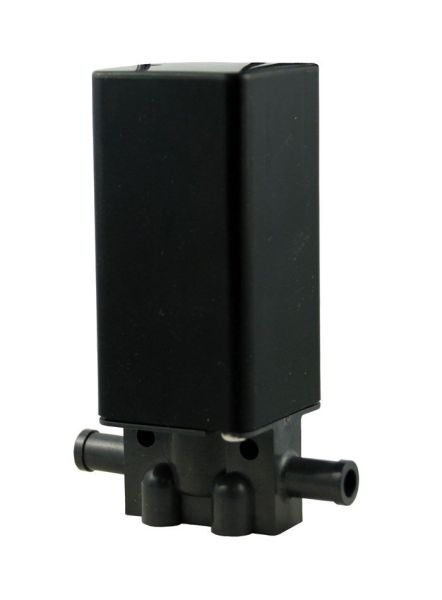

WBV Series - Diaphragm solenoid valve for dialysis machines
Orifice diameter 4.0mm
Description
2/2-way diaphragm solenoid valve with fluid separation normally closed.
Designed for dialysis machines and irrigation lines with a large nominal width of 4 mm and a compact design.
With a media temperature range of up to 95 ° C and a low power consumption of 6 W it offers advantages compared to other models.

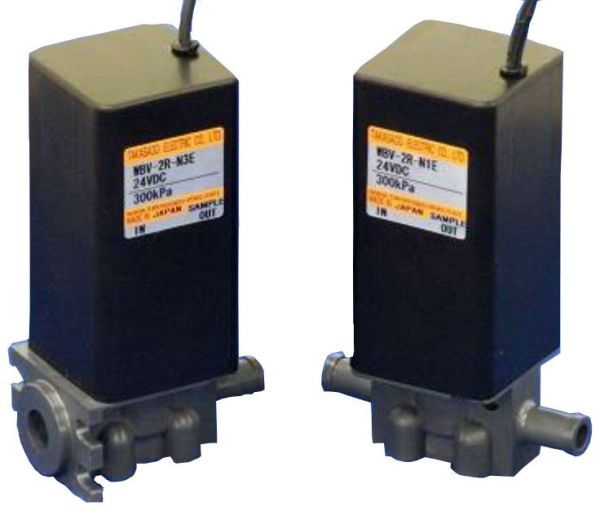

Various connection options are available, including an O-ring version that can be mounted directly on the expansion tank.
With an operating pressure range from -900 to 3000 mbar on all connections, this valve series enables operation even in applications where the pump flow is reversed.
Specifications
Type
|
2/2-way normally closed
|
Orifice diameter
|
4.0 mm
|
Port Connection
|
hose barbs | O-ring
|
Operating voltage
|
12 VDC | 24 VDC
|
Operating pressure range
|
input: -900 - 3000 mbar output: -900 - 3000 mbar |
Diaphragm material
|
EPDM | FPM
|
Housing material
|
PPS
|
Fluid temperature range
|
5 - 95°C
|
Ambient temperature range
|
0 - 50°C
|
Power consumption
|
6 W
|
Operating duration
|
100% ED
|
Mounting direction
|
Any
|
Fluid
|
Resistant to neutral and aggressive liquids / gases (see resistance lists) |
Dimensions
|
48.0- 57.0 x 33.0 x 84.8 mm
|
Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, different port connections, ...)
