CTV series - Diaphragm isolation solenoid valve
Orifice diameter 1.0 - 1.6mm
Description
2/2-way and 3/2-way diaphragm isolation solenoid valves with fluid separation.
A large selection of materials in contact with the medium, connection options and a very large pressure range allow a wide range of applications.
A 2/2-way version with push-in fittings is available for this series. These connections allow PTFE or PFA hoses with an outside diameter of 2.0 mm.
Specifications
Type
|

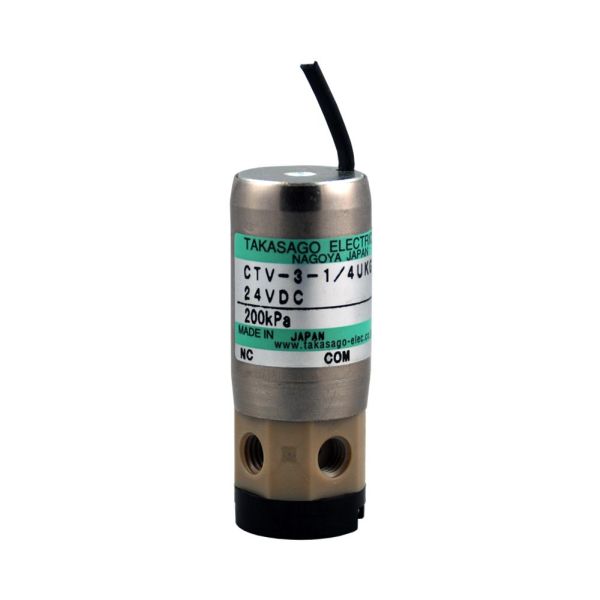

2/2-way normally closed 2/2-way normally open 3/2-way |
Orifice diameter
|
1.0 - 1.6 mm
|
Port Connection
|

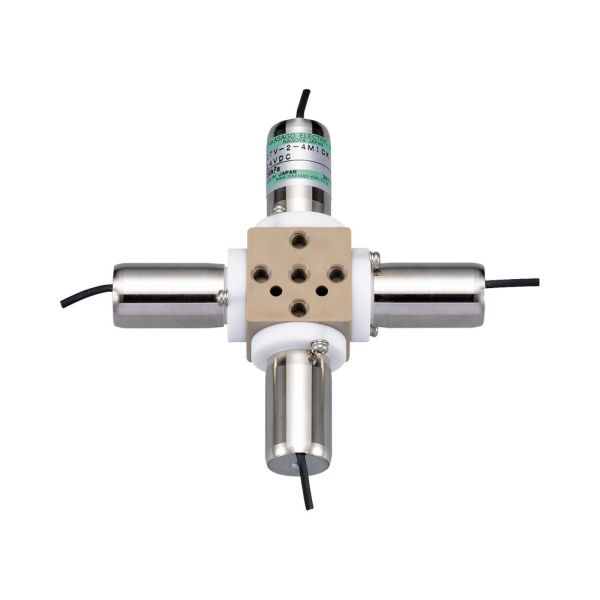

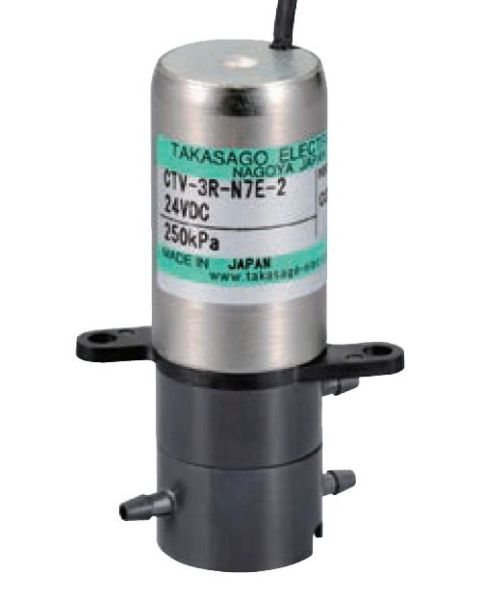

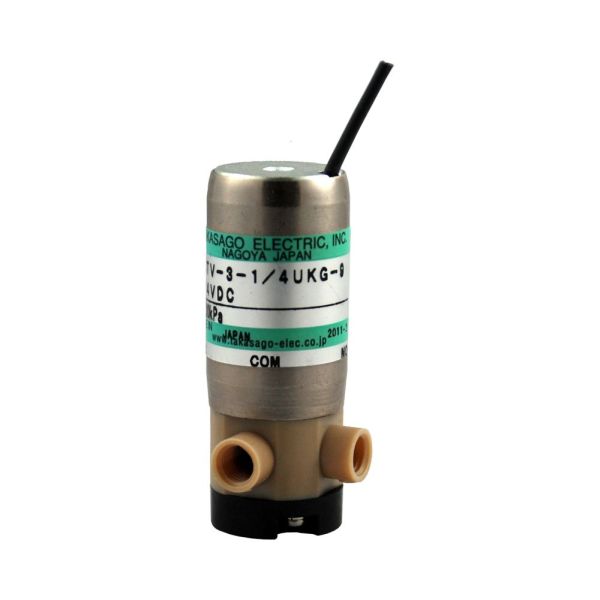

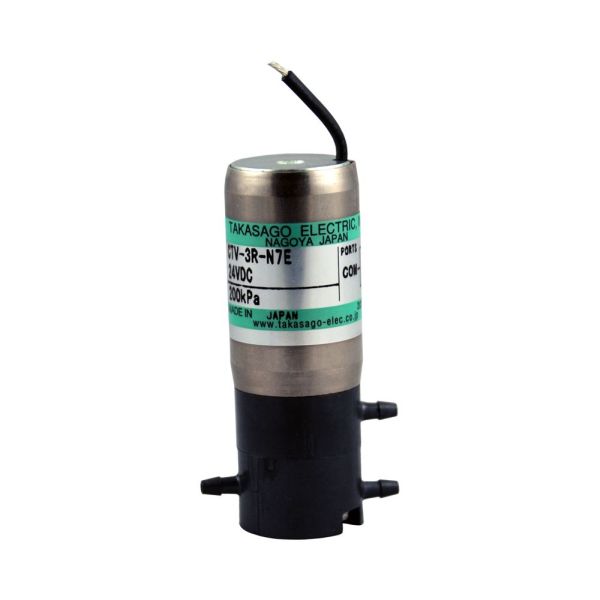

M6 | 1/4-28UNF | Hose barbs | Flange | Push-In fittings (for 2/2-way)
|
Rated voltage
|
12 VDC | 24 VDC Other voltages on request |
Operating Pressure range
|
input: -500 - 2000 mbar (special models up to 6000 mbar) output (NC | NO): 0 - 500 mbar |
Diaphragm material
|
PTFE
|
Body material
|
PEEK | PPS | PTFE | POM
|
Seal material
|
Soft-Seal PTFE | Perfluoroelastomer (FFKM) | FPM | EPDM
|
Other materials in contact with the medium
|
PTFE Ceramic - AI2O3 | PEEK (for 3/2-way)
|
Fluid temperature range
|
0 - 50°C (higher temperatures on request)
|
Ambient temperature range
|
0 - 50°C (higher temperatures on request)
|
Power consumption
|
1.9 - 4.4W (depending on model) |
Operating duration
|
100% ED
|
Mounting direction
|
Any
|
Fluid
|
Resistant to neutral and aggressive liquids / gases (see resistance lists) |
Dimensions (depending on model) |
Ø21.0 x 59.8 mm
|
Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, different port connections, ...)

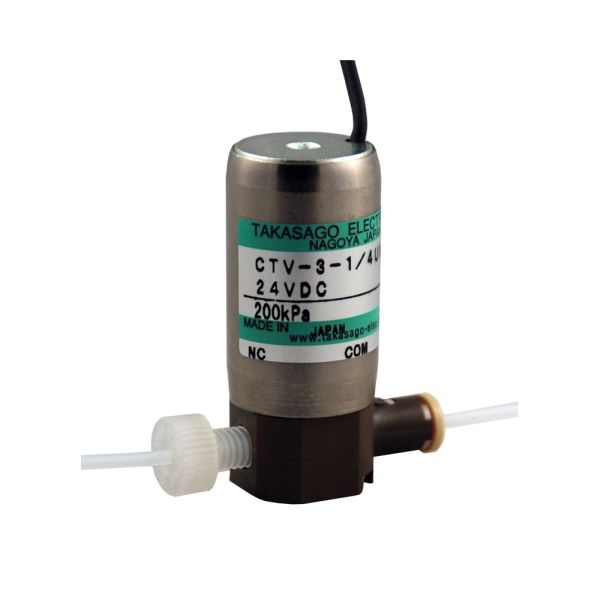

CTV Series push-in connectors
Some models of this valve series are also available with push-in connections directly to the valve body. Read more about the technical information on push-in connections.
Downloads
CTV series data sheet 272 KB
