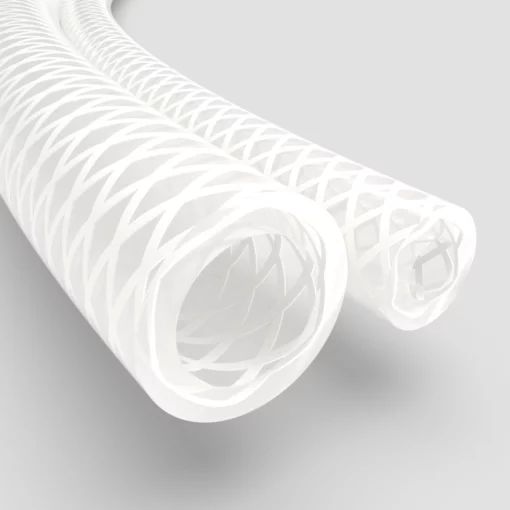

Braided Reinforced TPE-Tubing for high pressure
Alternative to silicone tubing for high purity fluid under pressure with biocompatibility for demanding biomedical and pharmaceutical applications.
Description
The braided reinforced TPE tubing is durable and an excellent choice for use in high pressure applications.
It is used for high-purity fluid transfer in pharmaceutical, medical and biotechnology applications.
Specifications
- Shore-A 68
- High pressure rating
- Very good bio compatibility
- Temperature range: -80°C to 135°C
- Sterilizable (autoclave, EtO sterilization, gamma sterilization 45 kGy, withstands multiple autoclaving cycles)
- low protein binding
- low gas and oxygen permeability
- low extractability and leachability
- ultra-pure medicinal quality
- Material certificate and lot traceability
Approvals and standards
- USP Class VI biocompatibility requirements
- USP 661 compliant
- cytotoxicity criteria
- CFR Title 21 Section 177.2600
- ISO 10993 (part 4 and 5)
- Clean room manufactured
- Fully lot traceable
- Non-animal derived − BSE/TSE compliant
Technical data of the braided reinforced TPE tubing
Article No.
|
ID
|
OD
|
WT
|
Minimum Bend Radius (mm) (unsupported) |
Max. working pressure at 20°C (bar)* |
|---|---|---|---|---|---|
TPEG135-2-6
|
1/8"
|
3/8"
|
1/8"
|
6.35
|
11.16
|
TPEG135-4-8
|
1/4"
|
1/2"
|
1/8"
|
11.18
|
8.00
|
TPEG135-6-10
|
3/8"
|
5/8"
|
1/8"
|
22.35
|
6.55
|
TPEG135-8-12
|
1/2"
|
3/4"
|
1/8"
|
28.70
|
7.58
|
TPEG135-10-16
|
5/8"
|
1"
|
1/8"
|
38.10
|
8.14
|
TPEG135-12-18
|
3/4"
|
1 1/8"
|
3/16"
|
50.80
|
6.20
|
TPEG135-16-22
|
1"
|
1 3/8"
|
3/16"
|
63.50
|
3.86
|
* Working pressure is determined using a 4:1 safety factor of the maximum burst pressure per ASTM D1599
Braided Reinforced TPE-Tubing in our online shop
We offer the Braided Reinforced TPE-Tubing in our online shop in quantities of 4.5m, 7.6m and 15m / package.
If you need larger quantities or are interested in prefabricated tubing-sets with connectors, we look forward to your inquiry.
