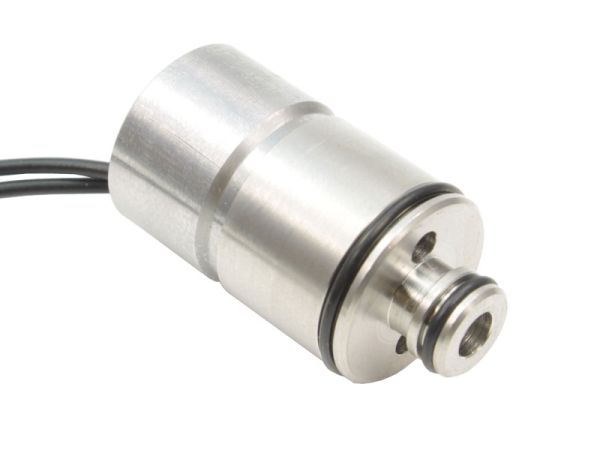

15mm micro solenoid valve | long life-time - fast switching
cartridge type valve
Description

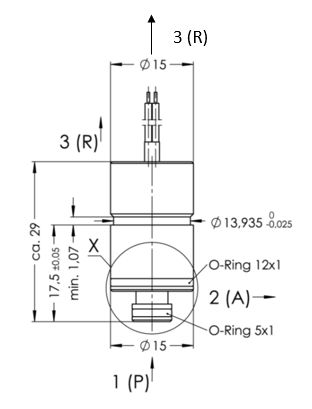

2/2-way normally closed and 3/2-way valves with stainless steel body
Micro valve with an outside diameter of 15mm with orifice diameters up to 2.0mm.
Weight only 22 g.
fast switching - switching times in the millisecond range
Long life-time - up to 4 billion switching cycles possible, depending on application

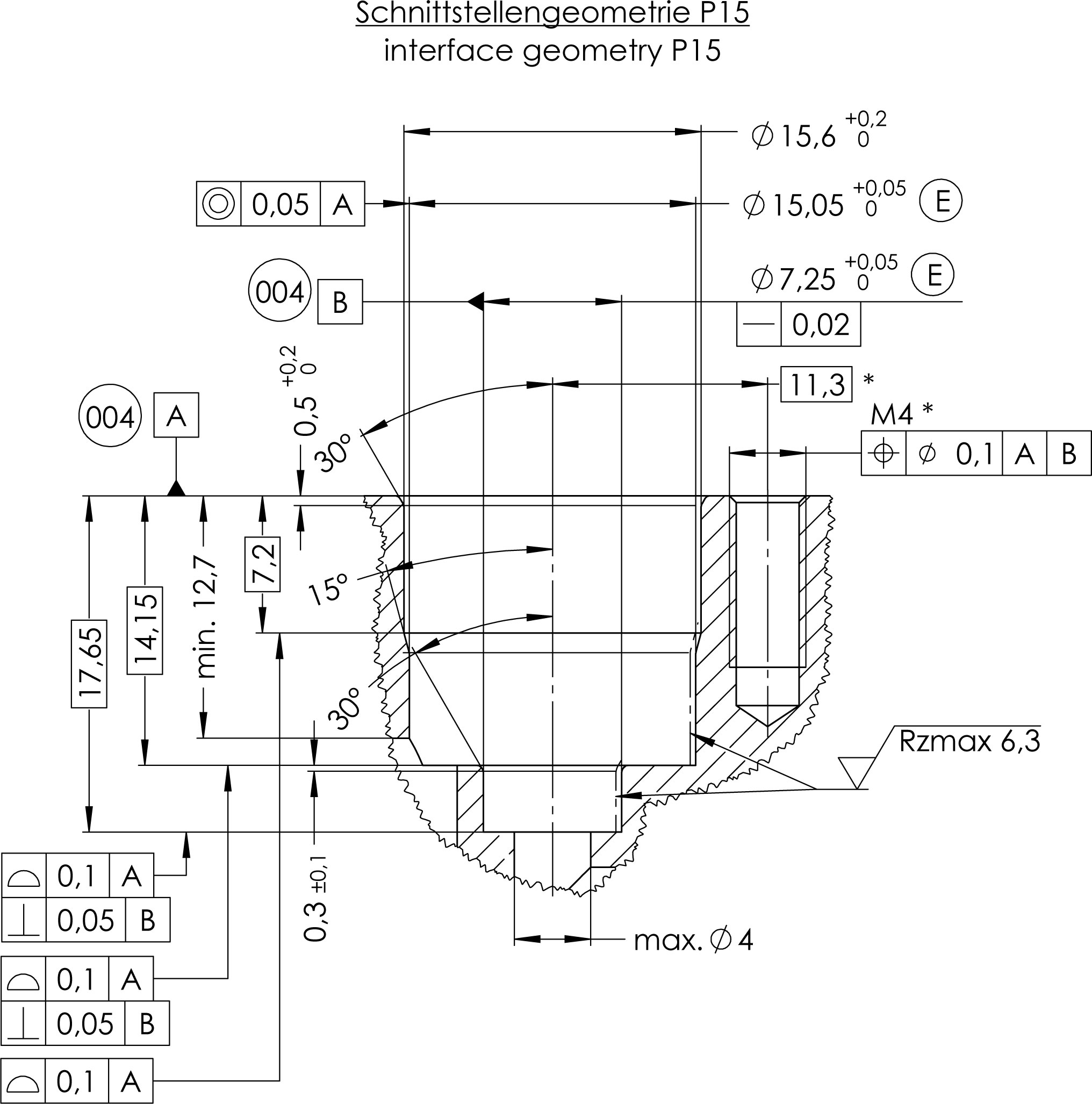

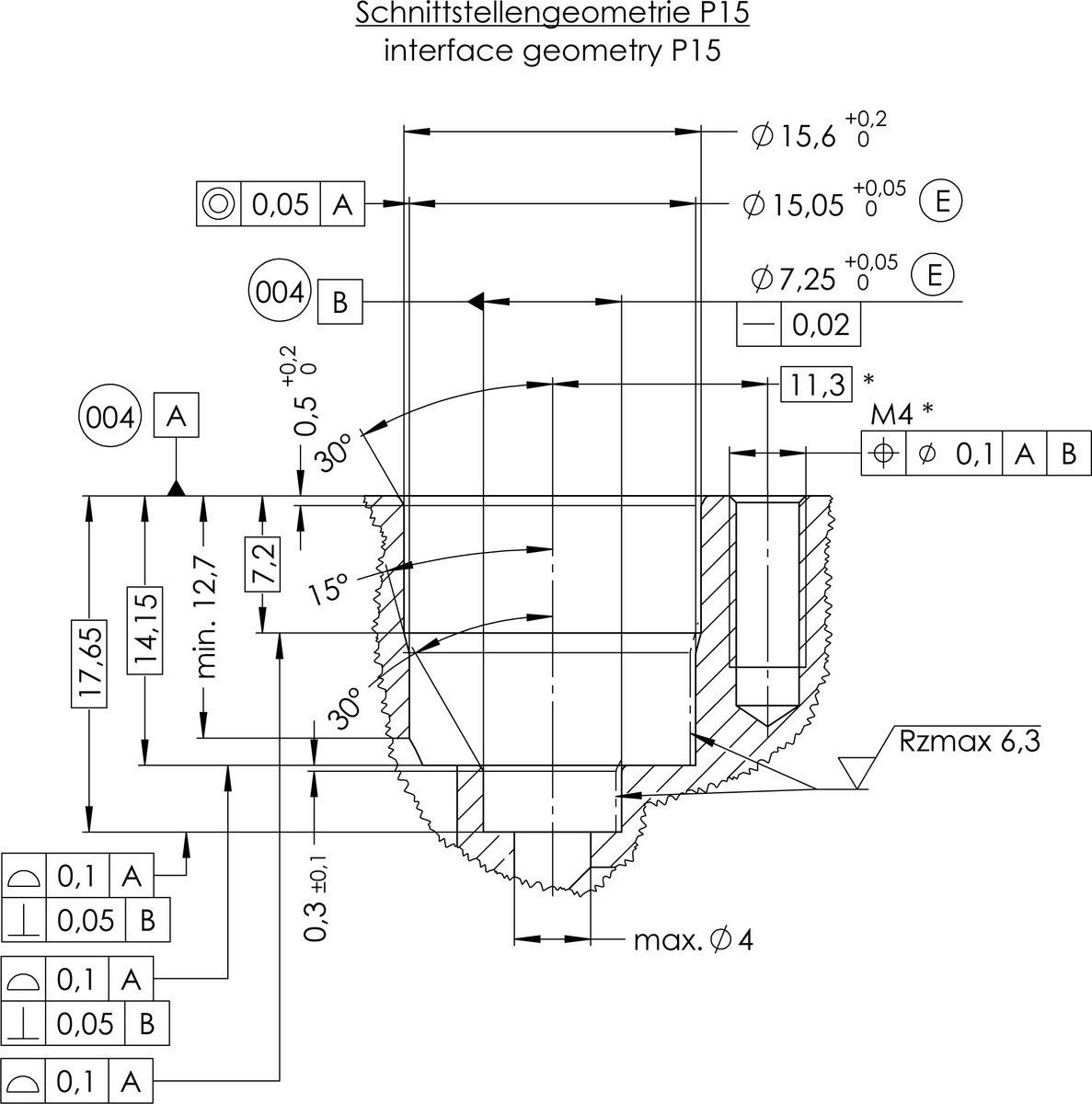

The compact design and cartridge system enable space-saving integration.
Specifications
Type
|
2/2 way normally closed | 3/2 way
|
Connection type
|
Cartridge
|

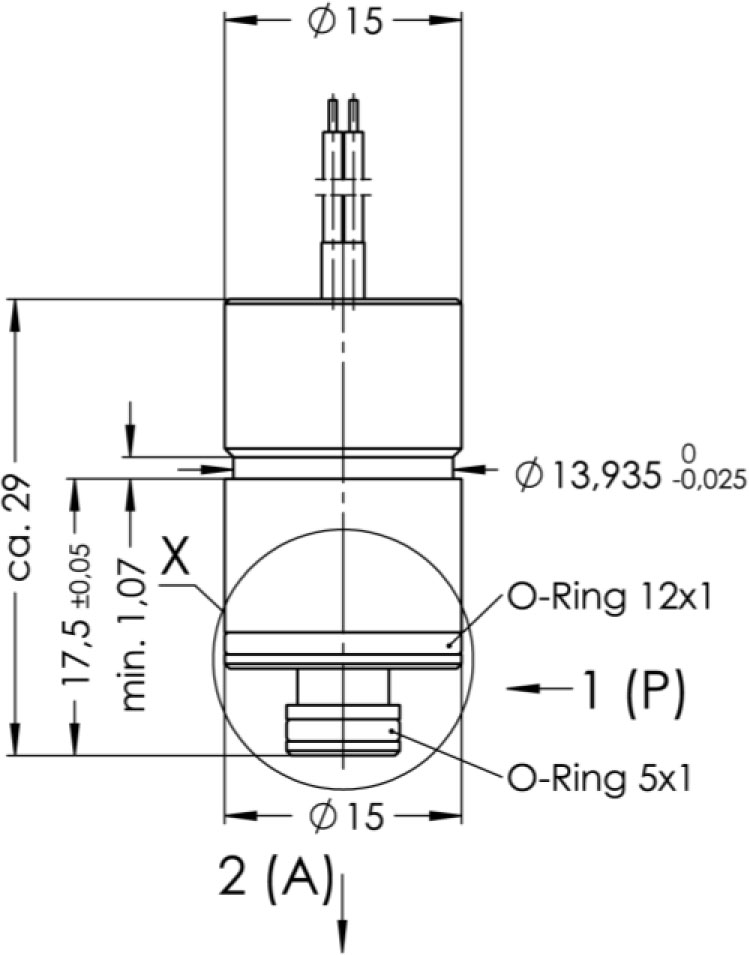

Size
|
15 mm
|
Voltage
|
6 VDC | 9 VDC | 12 VDC | 24 VDC
|
Orifice diameter
|
0.5 mm | 1.0 mm | 1.5 mm | 2.0 mm
|
Pressure range
|
0 - 10 bar (depending on orifice diameter)
|
Gasket
|
NBR | FKM | EPDM | FFKM
|
Max. ambient temp.
|
50 °C
|
Body material
|
stainless steel (1.4305)
|
Inner parts material
|
stainless steel (1.4310/1.4105), Joint connection Loctite 603
|
Power consumption
|
1.0 - 1.5 W
|
Switching frequency max.
|
200 / s
|
Switching time
|
1.0 ms to 5.0 ms
|
Operating duration
|
100% ED
|
Mounting direction
|
Any (preferably upright)
|
Weight
|
22 g
|
